I made up a 3mm version of the bushy with padauk scales
a photo of the two together
I will be starting on a neck knife size one next
Sunday, 22 May 2011
Friday, 20 May 2011
Drop point tanto bushy part 2

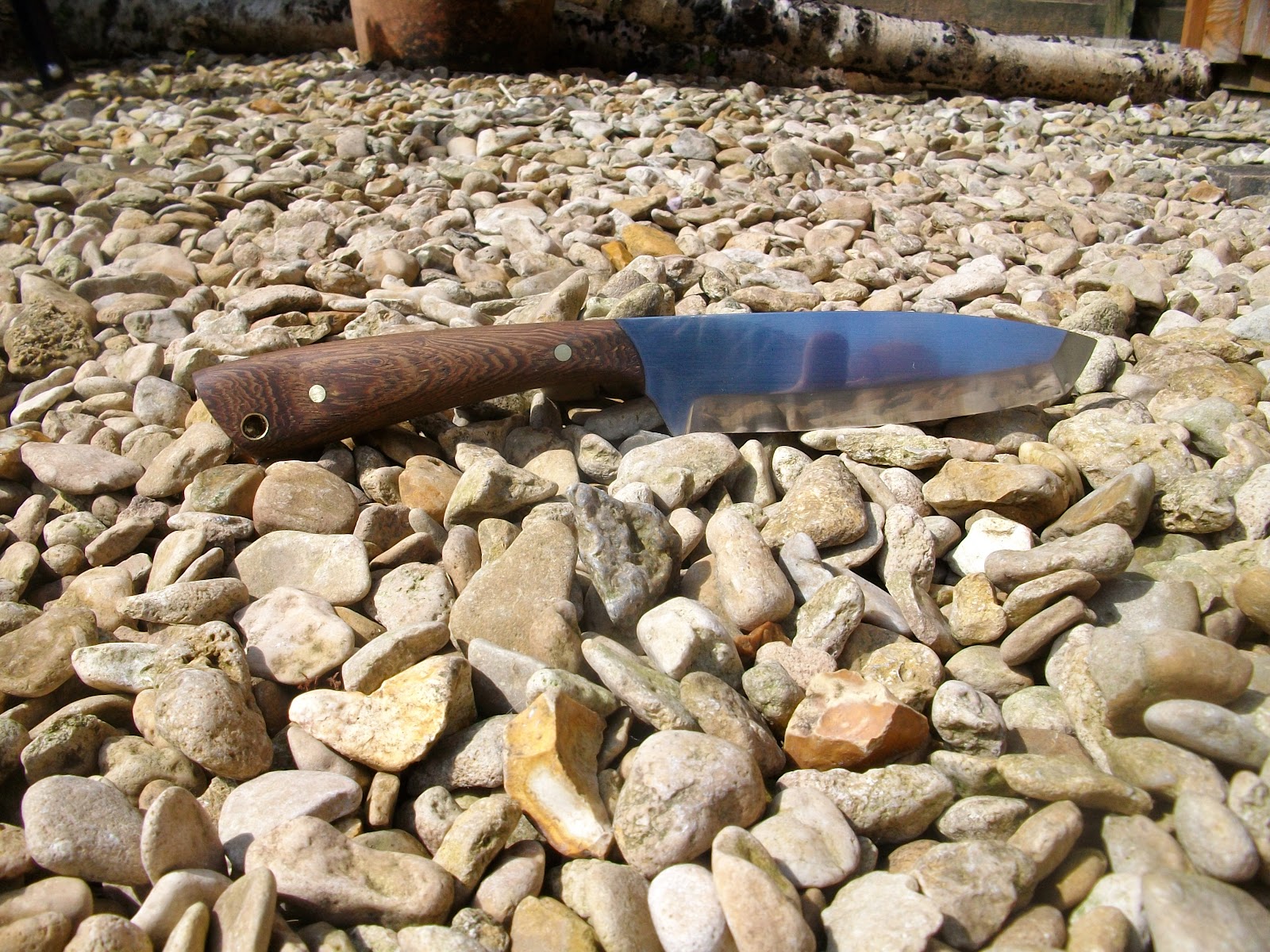

I've just completed it this morning , I hope you like it
The handle is 'panga panga ' a close relative of 'wenge' . I got a nice piece from Isca Woodcraft's , unfortunately my camera skills don't do it justice
The handle is 'panga panga ' a close relative of 'wenge' . I got a nice piece from Isca Woodcraft's , unfortunately my camera skills don't do it justice
Wednesday, 18 May 2011
Drop point tanto bushy
I started to play with a new design yesterday . It is a drop point bushcrafter with a tanto point. I haven't seen anything like it , so I have no idea weather it's usable knife shape
the steel I'm using is 4mm 01 , about 30mm wide
the bevels are the normal 22 degree scandi grind found on most bushy blades
I hand sanded the flats to 360 grit before heat treatment . The blade is tempering in the oven at the moment .
I hope to get some scales on this by the weekend
the steel I'm using is 4mm 01 , about 30mm wide
the bevels are the normal 22 degree scandi grind found on most bushy blades
I hand sanded the flats to 360 grit before heat treatment . The blade is tempering in the oven at the moment .
I hope to get some scales on this by the weekend
Saturday, 14 May 2011
2 finger neck knife part 2
I got round to putting a handle on this little one this week. I used some more home made 'micarta' again . This time the 'micarta' was a mixture of brown cotton and hessian
I made up a little KYDEX sheath this morning and added some man knitting
overall length is 115mm
blade length 47mm
steel 3mm 01
I made up a little KYDEX sheath this morning and added some man knitting
overall length is 115mm
blade length 47mm
steel 3mm 01
Saturday, 7 May 2011
2 finger neck knife

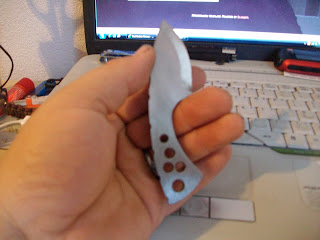

I made this little one up today from my last little bit of 01 . I should be getting some more next week if Cromwell's get there act together
Total length is 112mm
blade length is 45mm
I should get round to doing the heat treatment tomorrow (if all goes well)
I'm not sure what I'm going to use for handle scales yet
Total length is 112mm
blade length is 45mm
I should get round to doing the heat treatment tomorrow (if all goes well)
I'm not sure what I'm going to use for handle scales yet
Wednesday, 4 May 2011
Another nessmuk part 2
Just finished this one , using the GITD 'micarta' on the 3mm 01 nessi blade .
the scales are held on with epoxy and 4 mm brass pins
overall length is about 220mm
the blade is 105mm long with a 22 degree bevel and a micro bevel
orange satin liners . I was hoping the orange GITD powder would show up a bit better giving the impression that the liners were shining through the hessian , but it doesn't really glow for very long .
I will try and get a photo later .
the scales are held on with epoxy and 4 mm brass pins
overall length is about 220mm
the blade is 105mm long with a 22 degree bevel and a micro bevel
orange satin liners . I was hoping the orange GITD powder would show up a bit better giving the impression that the liners were shining through the hessian , but it doesn't really glow for very long .
I will try and get a photo later .
